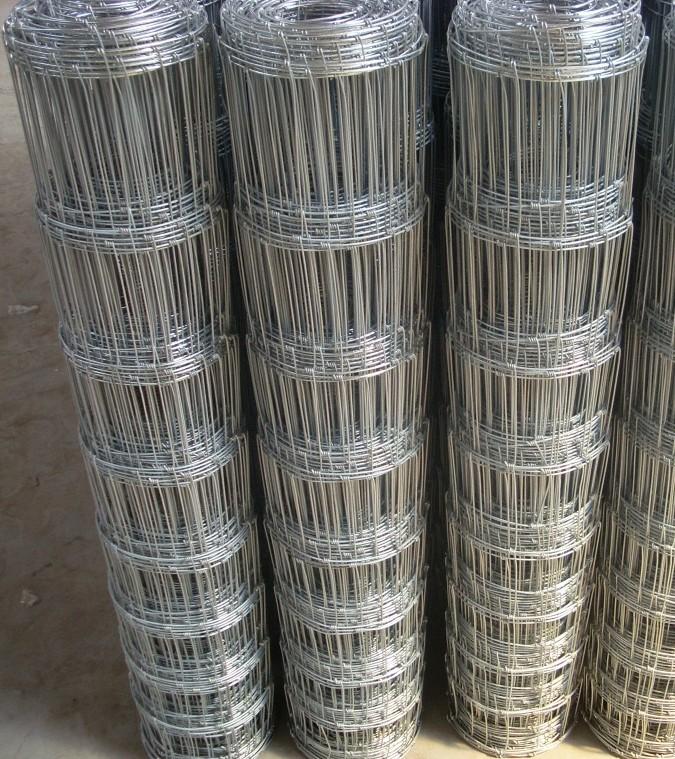

Hinge Joint Wire Fence is also named as field fence and deer fence.
we offer have innovative and firm structure, flat surface, uniform opening and good integration. offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property. Unlike the with the welding spots getting easily broken, our are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.
|
Num
|
Specification mesh
|
Gross Weight
(kg)
|
Set and bottom silk Diameter
(mm)
|
In silk
Diameter
(mm)
|
Volume diameter (mm)
|
|
Type
|
Specification
|
|
1
|
7/150/813/50
|
102+114+127+140+152+178
|
19.3
|
2.5
|
2.0
|
270
|
|
2
|
8/150/813/50
|
89(75)+89+102+114+127+140+152
|
20.8
|
2.5
|
2.0
|
270
|
|
3
|
8/150/902/50
|
89+102+114+127+140+152+178
|
21.6
|
2.5
|
2.0
|
270
|
|
4
|
8/150/1016/50
|
102+114+127+140+152+178+203
|
22.6
|
2.5
|
2.0
|
270
|
|
5
|
8/150/1143/50
|
114+127+140+152+178+203+229
|
23.6
|
2.5
|
2.0
|
270
|
|
6
|
9/150/991/50
|
89(75)+89+102+114+127+140+152+178
|
23.9
|
2.5
|
2.0
|
270
|
|
7
|
9/150/1245/50
|
102+114+127+140+152+178+203+229
|
26.0
|
2.5
|
2.0
|
270
|
|
8
|
10/150/1194/50
|
89(75)+89+102+114+127+140+152+178+203
|
27.3
|
2.5
|
2.0
|
270
|
|
9
|
10/150/1334/50
|
89+102+114+127+140+152+178+203+229
|
28.4
|
2.5
|
2.0
|
270
|
|
10
|
11/150/1422/50
|
89(75)+89+102+114+127+140+152+178+203+229
|
30.8
|
2.5
|
2.0
|
270
|
